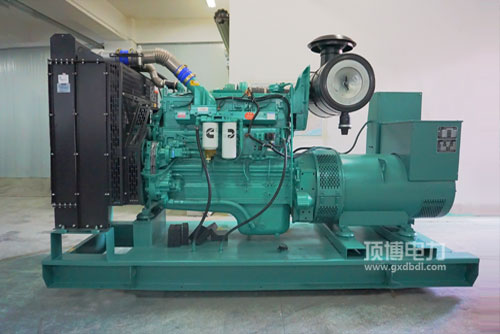

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯生产发电用启驱动力然油金钱性好: 为先进的然油把控好平台，具有的STC、ESTC 等级划分把控好平台，特种的设计的活塞件顶面复燃室，超高压发射然油，有效的做雾化，复燃有效的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电机组用热车机瞬态功效市场大的: 好看的热车机整体的制定，协助康明斯特别的EFC系统化，把握精确高，没有响应时快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯并网发电用打着机升工作效率高: 整体结构设计的概念紧身.自己的外观布置教室适当，运动保持稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷型号规格 QSNT. QSK19. QSK38. QSK50具备我国的非的道路再者步骤及北美地区Tier2. Tier 3排出法律规范标准。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备品备件可求性好， 发起机进行及维护维修保养便利性，人工成本可控。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作电压规模 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观的尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净效率 Dry Weight   940kg

224-310KW康明斯带发电用打火机的特征 ：面积小， 挤压比低， 防雨百叶窗空气当中烧水，更易重启，走动车载电子电的最佳的选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机参数	惯用输出功率(kW)Prime Power	自备工率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
